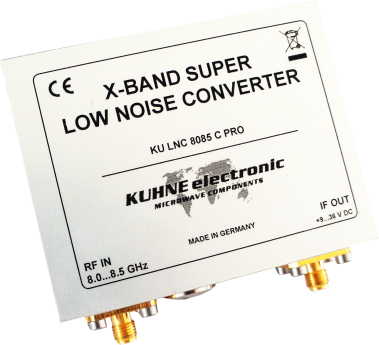

KU LNC 8085 C PRO, Down Converter
Technical specifications
Frequency range (RF) | 8000..8500 MHz |
Maximum input power | 1 mW (0dBm) |
Frequency range (IF) | 200..1300 MHz |
Noise figure @ 18 °C | typ. 0.8 dB, max. 1.0 dB |
Gain @ 25 °C | typ. 50 dB (high gain), typ. 37 dB (low gain) |
Output IP3 | 20 dBm |
LO frequency | 7200 MHz, 7400 MHz, 7600 MHz, 7800 MHz |
LO accuracy @ 18 °C | 1 kHz |
LO frequency stability | 0.5 ppm |
Phase noise @ 1 kHz | typ. -90 dBc/Hz |
Phase noise @ 10 kHz | -94 dBc/Hz |
Phase noise @ 100 kHz | typ. -105 dBc/Hz |
Supply voltage | +9 ... +36 V DC |
Current consumption | typ. 250 mA @ 12V DC |
Maximum case temperature | +55 °C |
Input connector / impedance | SMA-female, 50 ohms |
Output connector / impedance | SMA-female, 50 ohms |
Case | milled aluminium, IP43 |
Weight | 230 g |
Remote power supply via IF | yes |
Description
The KU LNC 8085 C PRO converts the RF range of 8 ... 8.5 GHz into the IF range of 200 ... 1300 MHz. In addition to the four fixed programmed LO frequencies of 7200/7400/7600/7800 MHz, it has as a special feature a function to manually select the LO in 10 MHz steps. This allows you to individually control your desired IF range.The two-stage adjustable gain of either typ. 37 dB or typ. 50 dB with a low noise figure of typ. 0.8 dB makes the flexible converter especially attractive for deep space applications.
As a proven tradition, the converter has again been built into our rugged and waterproof housing.
Features
- Low noise figure
- Large bandwidth
- Low phase noise oscillator
- High frequency stability of the oscillator
- High linearity
- Antenna port protected against static discharge
- Small and light-weight to allow easy pole mounting
- Tri-colour LED indicates unit status and gain mode setting
- Overvoltage protection and reverse polarity protection
- Remote power supply via output connector
